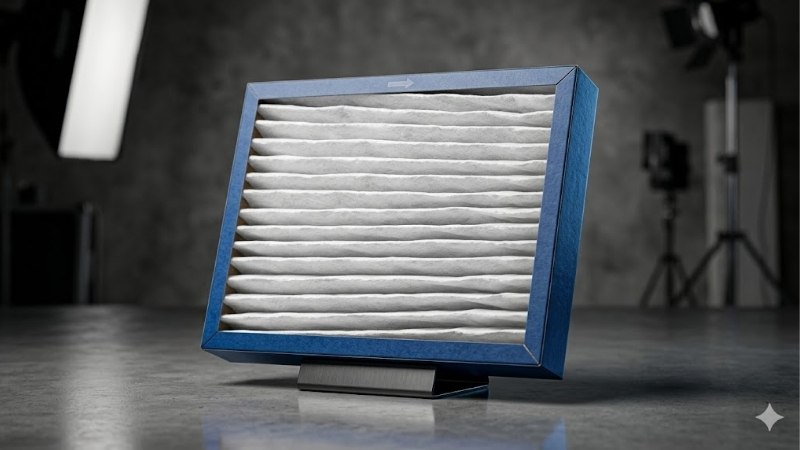

16x20x4 air filter is a highly effective upgrade for HVAC systems that struggle with dust buildup and poor indoor air quality. This thicker 4-inch filter helps capture more airborne particles than standard filters, protecting both your home environment and your heating and cooling equipment. By improving filtration efficiency, it can reduce dust on surfaces and support cleaner, healthier air throughout your living space.
The Engineering Benefits of Switching to a 4-Inch Deep Pleated Filter
Many homeowners wonder why they should invest in a thick, 4-inch deep-pleated variant rather than sticking to the traditional, cheap 1-inch fiberglass filters found at local hardware stores. The advantages are rooted in fluid dynamics and material engineering.
Maximizing Surface Area for Unrivaled Particle Retention
The defining feature of a 16x20x4 air filter is its accordion-like, deeply pleated design. When you unfold the filtration media contained inside a 4-inch deep casing, the total surface area is up to nine times larger than that of a standard 1-inch flat filter. This expanded surface area allows the filter to catch and hold a massive volume of microscopic debris before it restricts airflow.
Lowering Static Pressure to Save Your HVAC Blower Motor
A widespread misconception is that thicker filters choke an HVAC system and strain the motor. In reality, the opposite is true. Because a 4-inch filter provides a significantly larger pathway for the air to move through, it lowers the initial static pressure compared to a tightly woven, thin 1-inch filter. This allows your furnace or air handler to circulate clean air throughout your home effortlessly.
Drastically Reducing Your Annual Maintenance Workload
While standard 1-inch filters require strict replacement every 30 days to avoid clogging, a high-capacity 16x20x4 air filter is engineered to perform optimally for anywhere from 6 to 12 months. This extended lifecycle means you only have to change your filter once or twice a year, saving you time, reducing household waste, and cutting long-term maintenance costs.
Deciphering MERV Ratings for the 16x20x4 Size Category
When shopping for a replacement filter online or in-store, the most critical specification to analyze is the Minimum Efficiency Reporting Value (MERV). Selecting the right rating requires matching your air quality goals with your system’s capabilities.
MERV 8: Robust Baseline Defense Against Large Particulates
A MERV 8 rated 16x20x4 air filter is the ideal choice for standard residential homes without indoor pets or severe respiratory issues. Filters in this class are highly effective at trapping large airborne nuisances such as household dust, lint, pollen, and dust mite debris. This keeps your internal air conditioning coils free of grime, maintaining peak thermodynamic efficiency.
MERV 11: Enhanced Protection for Pet Owners and Allergy Sufferers
If you share your home with shedding dogs or cats, or if you struggle with seasonal allergies, stepping up to a MERV 11 filter is highly recommended. These filters feature a tighter micro-fiber weave capable of pulling fine pet dander, microscopic mold spores, and light auto emissions out of your air supply before they can settle into your carpets or furniture.
MERV 13: Premium Air Purification for Bacteria, Smoke, and Viruses
MERV 13 is the highest efficiency rating recommended for standard residential HVAC equipment. A premium MERV 13 16x20x4 air filter acts as a medical-grade shield, targeting ultra-fine particles including airborne bacteria, smoke from cooking or wildfires, sneeze droplets, and virus-carrying nuclei. It is the gold standard for homeowners seeking absolute purity.
Avoiding Costly Mistakes: Nominal vs. Actual Size Explained
One of the most frustrating experiences for homeowners is ordering a replacement filter online only to realize it will not physically slide into their furnace’s metal filter track. This issue stems from a misunderstanding of dimensional labeling.
Understanding Nominal Casing Dimensions
The numbers printed in bold on the side of the filter—16x20x4—represent the nominal size. This is a rounded-up marketing measurement used by the HVAC industry to help consumers quickly categorize the physical slot built into their ducted return air plenum.
Verifying the Exact Actual Measurements
If you measure a 16x20x4 air filter with a tape measure, you will discover that its actual dimensions are slightly smaller—typically measuring around $15.5 \times 19.5 \times 3.75$ inches. This slight reduction is intentionally designed into the manufacturing process to ensure the filter can slide in and out of the housing track without bending or binding.
The Consequences of Air Bypass Caused by Loose Fits
If your specific HVAC housing requires a specific actual dimension and you purchase a brand that leaves a gap around the perimeter, air will always take the path of least resistance. This causes unfiltered, dusty air to bypass the filter entirely, coating your expensive evaporator coils in dust, which can eventually freeze your AC system or cause mechanical failures.
Step-by-Step Guide to Replacing and Maintaining Your 4-Inch Filter
To ensure your heavy-duty 4-inch filter provides clean air without reducing your system’s efficiency, you must implement proper installation and inspection techniques.
Step 1: Locating the Filter Slot and Powering Down the System
Before replacing your filter, locate the filter slot, which is usually positioned inside the return air duct right before it attaches to the main furnace or air handler unit. Always turn off your HVAC system at the thermostat or breaker to prevent the fan from kicking on while you are handling the filter.
Step 2: Aligning the Airflow Directional Arrow Correctly
Every 16x20x4 air filter features a prominent arrow printed on its cardboard or plastic frame indicating “Air Flow.” This arrow must always point in the direction that the air travels—which is toward your HVAC blower motor, away from the return ducts. Installing a filter backward can cause the pleats to collapse under pressure.
Step 3: Performing Seasonal Visual Inspections
Even though a 4-inch filter can technically last up to a year, you should pull it out every three months for a quick visual health check. If the pleats have turned a dark, charcoal gray and are visibly coated in thick hair or dust, replace the unit immediately, regardless of how much time is left on the product’s box timer.
The Long-Term Financial Impact of Upgrading Your Furnace Filter
Many homeowners focus solely on the initial retail cost of a premium 4-inch deep pleated filter without realizing that this minor household upgrade yields major compounding financial returns over time.
Slashing Your Monthly Heating and Cooling Utility Bills
Heating and cooling make up the single largest portion of an average household’s energy consumption. When a thin 1-inch filter gets clogged with dust, your HVAC blower motor has to draw more electrical current to push air through the restricted fibers. Because a 16x20x4 air filter maintains optimal static pressure and airflow for months, your system runs on minimal power, leading to immediate savings on your monthly electricity and gas bills.
Avoiding Expensive Emergency HVAC Repair Calls
The primary cause of premature HVAC component failure is dirt and lack of proper airflow. When airflow drops due to a restricted filter, your air conditioning evaporator coils can instantly freeze over into a block of ice, or your furnace’s heat exchanger can crack from severe overheating. A reliable 4-inch filter shields these critical internal parts from dust buildup, saving you from paying thousands of dollars for emergency technician visits and parts replacements.
Maximizing the Operational Lifespan of Your Entire HVAC System
Replacing a residential furnace or heat pump is a massive capital expense that can cost upwards of several thousand dollars. While a poorly filtered system might break down permanently after just 10 years due to constant mechanical strain and friction, a system protected by a high-capacity 16x20x4 air filter operates under ideal thermal conditions. This extends the operational lifespan of your equipment closer to its maximum 15 to 20-year potential.
Frequently Asked Questions
No, stacking four 1-inch filters in a 4-inch slot is not recommended. It restricts airflow, reduces filtration efficiency, and can cause air bypass around the filters, leading to poorer overall performance.
Can I stack four 1-inch filters inside a 4-inch slot?
No, you should never stack multiple 1-inch filters to fill out a 4-inch housing. Stacking creates an extreme restriction on airflow, skyrocketing the static pressure within your ducts. This restricts air circulation, overworks your system’s blower motor, spikes your energy bills, and can permanently damage your compressor or heat exchanger.
How often should I realistically change my 16x20x4 air filter?
For a typical household without pets, changing the filter once every 6 to 9 months is sufficient. However, if you have multiple shedding pets, smoke indoors, use a fireplace frequently, or live in an area prone to dust storms or seasonal wildfires, you should plan to replace the filter every 3 to 4 months.
What is the difference between MERV, FPR, and MPR ratings?
MERV is the universal industry standard scale developed by ASHRAE. MPR is a proprietary scale used by 3M (filtration efficiency for micro-particles), and FPR is a scale used by The Home Depot. A MERV 11 filter is roughly equivalent to an MPR 1000–1200 or an FPR 7 rating, making it easy to cross-reference brands.
Will a MERV 13 4-inch filter cause my AC to freeze up?
Because a 4-inch deep pleated filter features a massive surface area, a MERV 13 rating will not restrict airflow or cause your AC to freeze in a modern, well-designed residential HVAC system. However, if your system’s ductwork is undersized or your blower motor is old, check your system’s manual for static pressure compatibility.
Don’t miss these related articles we think you’ll enjoy:
Conclusion
Upgrading to a high-quality 16x20x4 air filter is the most effective way to protect your HVAC system and elevate your home’s air quality. By choosing the correct MERV rating and verifying actual dimensions, you ensure maximum dust extraction, lower energy bills, and a healthier living environment for your entire family.
