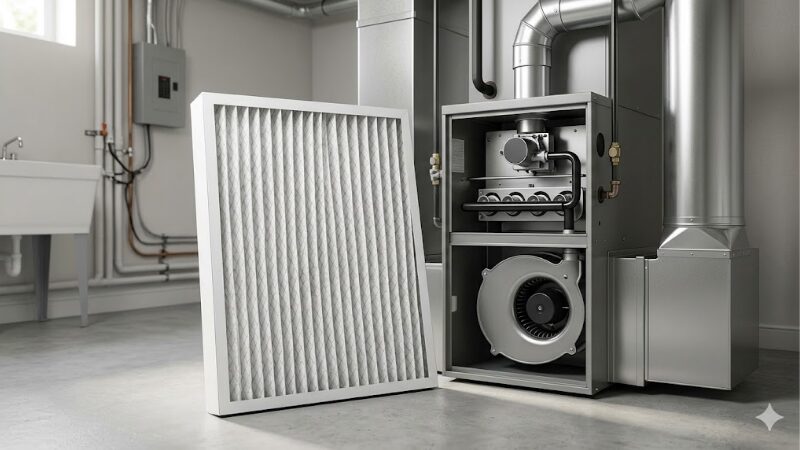

20x25x5 furnace filter refers to a heavy-duty, deep-pleated HVAC air filter designed to fit systems that use the 20x25x5 size specification. This type of furnace filter is commonly found in residential and light commercial HVAC systems and is engineered to improve indoor air quality by capturing fine particles such as dust, pollen, pet dander, and mold spores.
The Critical Metric: Nominal vs. Actual Sizing
The most common point of frustration for homeowners shopping for a replacement 20x25x5 furnace filter on Amazon or at local supply houses is ordering the wrong physical size. The numbers stamped on your filter box in large print—20x25x5—are the nominal dimensions, which serve as a rounded-up naming convention for the retail market.
Understanding the Discrepancy
The actual size represents the precise physical measurements of the filter frame down to the exact millimeter. Filter manufacturers purposefully engineer these cartridges to be slightly smaller than the nominal slot dimensions so they can slide smoothly into the metal tracks without binding, bending, or tearing the filter medium.
Because different HVAC equipment manufacturers (such as Honeywell, Carrier, or Lennox) build proprietary filter cabinets, the exact thickness of a nominal 5-inch filter can vary significantly across brands.
| Brand / Style | Nominal Size | Typical Actual Dimensions |
| Honeywell Compatible | 20x25x5 | 19 ¾” x 24 ¼” x 4 ⅜” |
| Lennox Compatible | 20x25x5 | 19 ¾” x 24 ⅞” x 4 ⅜” |
| Carrier/Bryant Compatible | 20x25x5 | 19 ⅛” x 24 ¾” x 4 ⁵⁄₁₆” |
Pro Tip: Before buying a multi-pack online, remove your currently installed filter and use a tape measure to record its exact physical length, width, and depth. If your cabinet is built for a 4 ⅜-inch deep Honeywell filter and you accidentally buy a brand with an actual depth of 4 ¾ inches, the media door will not close, causing unfiltered air to leak into your system.
Navigating MERV Ratings for 5-Inch Media Filters
The Minimum Efficiency Reporting Value (MERV) is a universal rating scale developed by ASHRAE to measure an air filter’s ability to capture particles between 0.3 and 10 microns. Thanks to the deep-pleat design of a 5-inch filter, you can deploy high-efficiency MERV tiers that would instantly suffocate a system utilizing a standard 1-inch filter track.
MERV 8: Practical Whole-House Protection
A MERV 8 pleated filter serves as an excellent, budget-friendly baseline for standard households without indoor pets or chronic respiratory illnesses. It successfully captures up to 85% of large airborne particles, including standard household dust, lint, plant pollen, and dust mite debris, keeping your internal evaporator coils clean and efficient.
MERV 11: The Superior Balanced Upgrade
For homes with shedding dogs, cats, or residents prone to seasonal allergies, upgrading to a MERV 11 filter is highly advantageous. This tier utilizes electrostatically charged synthetic fibers to capture over 85% of particles down to 1 micron, pulling fine pet dander, mold spores, car exhaust emissions, and cooking smoke out of the breathing loop.
MERV 13: Premium Clinical-Grade Defense
A MERV 13 filter is the highest efficiency rating recommended for residential forced-air systems. It targets ultra-fine particulates down to 0.3 microns, trapping airborne bacteria, virus-carrying sneeze droplets, microscopic smog, and wildfire smoke. This is the premier selection for individuals managing severe asthma or compromised immune systems.
The Physics of Deep Pleats: Airflow and Static Pressure
Many homeowners look at a thick 20x25x5 furnace filter and assume its heavy profile must make it harder for the furnace blower motor to push air through. In reality, the exact opposite is true due to the physics of deep-pleat design.
The Problem with 1-Inch Filters
A standard 1-inch filter has a very limited surface area. As dust accumulates on its surface, the pores clog rapidly, causing a sharp spike in static pressure (airflow resistance). This forces your blower motor to work significantly harder, consume more electricity, and run hotter, which can lead to premature motor failure.
The 5-Inch Advantage
When you unfold the deep, accordion-like pleats of a 20x25x5 filter, the total surface area of the filtration media can easily exceed 30 to 40 square feet. Spreading the incoming air across this massive surface area provides distinct mechanical benefits:
- Slower Airflow Velocity: Air passes through the media fabric at a slower pace, giving the electrostatic fibers more time to capture microscopic particles.
- Ultra-Low Resistance: Because the air has so many pathways to travel through, the filter exerts very little resistance against your blower motor, maximizing your system’s overall efficiency.
- Enormous Dust Capacity: It can hold pounds of dust and pet hair inside the deep valleys of the pleats before airflow begins to drop, protecting your HVAC investment safely for months.
Top 20x25x5 Filter Brands on the Market
Choosing a reputable brand ensures that the outer frame of your filter remains structurally stable and won’t buckle or collapse when your system ramps up to high fan speeds.
Honeywell Home FC100A1029
Honeywell is an industry benchmark for residential climate control. Their 5-inch media filters feature rigid, moisture-resistant beverage board frames that resist sagging in humid basement or crawlspace environments. They utilize precisely spaced pleat stabilizers to ensure uniform airflow distribution.
FilterBuy 20x25x5 Replacement Filters
FilterBuy is a popular choice for homeowners looking to buy high-quality filters in bulk. Made in the United States from recyclable components, FilterBuy offers their 20x25x5 dimensions in MERV 8, 11, and 13 configurations. Their filters include a protective wire mesh grid on the downstream side to prevent the media from flexing under high velocity.
Lennox Healthy Climate (X6675)
If your home uses a dedicated Lennox media cabinet, the OEM Healthy Climate filter is a premier choice. This filter is highly regarded for its perfect sealing properties, ensuring zero air bypasses the edges of the media frame. It is entirely free of chemical binders and glues, making it an excellent option for chemically sensitive individuals.
Lifespan, Maintenance, and Optimal Replacement Windows
One of the greatest luxuries of upgrading to a 20x25x5 furnace filter is avoiding the hassle of monthly filter changes. However, a long-lasting filter should still be inspected periodically to maintain optimal performance.
Over time, even high-capacity filters accumulate dust, pollen, and other airborne particles that can gradually restrict airflow. This buildup may not be immediately noticeable, but it can affect both indoor air quality and system efficiency if left unchecked.
For most residential HVAC systems, a quick inspection every few months is usually sufficient. This helps ensure the filter continues to perform as intended while also preventing unnecessary strain on the equipment.
Typical Lifespan Benchmarks
In a standard home under normal operating conditions, a high-quality 5-inch pleated filter will easily last 9 to 12 months before needing a replacement. In low-occupancy homes without indoor pets, some filters can perform efficiently for up to a full year.
Factors That Can Shorten Your Filter’s Lifespan
- Multiple Indoor Pets: Heavy shedding from multiple dogs or cats drops massive amounts of coarse fur and dander, which can blanket the outer edges of the pleats within 6 months.
- Continuous Fan Settings: Setting your thermostat’s fan option to “On” rather than “Auto” runs your air handler 24/7. This continuous filtration accelerates dust loading, meaning you may need to replace the filter every 6 months.
- Home Renovation Projects: Microscopic construction debris, such as fine drywall dust or flooring sawdust, will instantly clog high-efficiency filters. Always change your filter immediately after any major remodeling work.
Sizing and Performance Comparison Matrix
| Filtration Metric | MERV 8 Standard | MERV 11 Balanced | MERV 13 Premium |
| Primary Target Pollutants | Large Dust, Lint, Pollen | Pet Dander, Mold, Auto Smog | Bacteria, Viruses, Smoke |
| Typical Lifespan Range | 9 to 12 Months | 6 to 9 Months | 6 Months |
| Airflow Resistance Level | Extremely Low | Minimal | Very Low |
| Best Operational Fit | Standard homes, no pets | Pet owners, mild allergies | Asthma sufferers, wildfire zones |
Standard Residential Filtration Efficiency
MERV 8 filters are designed for baseline residential environments where air quality concerns are minimal. They primarily capture larger particles while maintaining very low airflow resistance, making them suitable for systems that prioritize efficiency and long filter life.
Balanced Performance for Everyday Indoor Air Quality
MERV 11 filters offer improved filtration capability without significantly restricting airflow. They are effective in homes with pets or mild sensitivity to allergens, providing a practical balance between air cleanliness and HVAC system performance.
High-Efficiency Protection for Sensitive Environments
MERV 13 filters deliver advanced filtration performance, targeting much finer particles such as smoke and airborne biological contaminants. They are best suited for high-demand environments, including areas affected by wildfire smoke or households with respiratory health concerns, while still maintaining manageable airflow resistance.
You may also like:
Conclusion
Investing in a premium 20x25x5 furnace filter is one of the most effective ways to safeguard your home’s indoor air quality while protecting your HVAC system from dust accumulation. By verifying your system’s actual frame dimensions, selecting the MERV rating that matches your family’s health needs, and performing a quick visual inspection every six months, you can maintain peak climate-control efficiency and clean, breathable air year-round.
