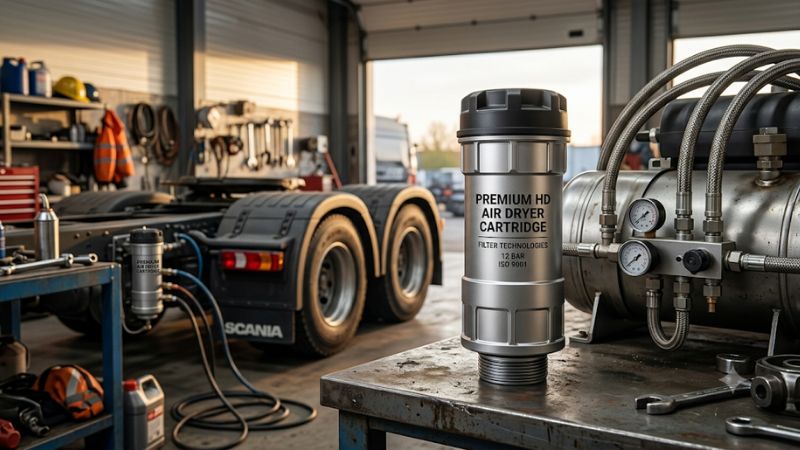

Air dryer cartridge components are vital for maintaining the safety of commercial vehicle braking systems. By extracting harmful moisture and oil from the compressed air line, these units prevent freezing and corrosion. Our detailed guide explores how to choose the finest option to guarantee outstanding performance on every single trip.
Understanding the Technology Behind Air Filtration
Heavy vehicles rely on pneumatic power to actuate their braking systems safely. If moisture enters these lines, it can cause severe rust or freeze during cold weather, leading to brake failure. Utilizing an air dryer cartridge helps keep the entire pneumatic loop clean, ensuring that your commercial trucks remain secure on the road.
The Role of Desiccant Beads in Moisture Removal
Inside the air dryer cartridge, tiny desiccant beads work to attract water molecules from the passing compressed air. This process, known as adsorption, ensures that the air exiting the device is dry and safe for the pneumatic lines. Over time, these beads become saturated and lose their ability to collect water, requiring a replacement.
When selecting a new unit, look for premium desiccant materials that offer high durability. Cheaper alternatives tend to break down quickly under intense heat and vibration, turning into a fine dust that can clog valuable valves downstream. Investing in quality desiccant beads ensures your braking system remains dry and fully functional.
Coalescing Filters and Oil Separation Mechanics
In addition to moisture, compressor systems often discharge small amounts of oil mist into the air supply. This oil can coat the desiccant beads, severely reducing their moisture-absorbing capacity. Modern filters incorporate specialized coalescing elements designed to trap these tiny oil droplets before they reach the main chamber.
By forcing the air through dense layers of synthetic fibers, the oil droplets merge into larger drops that drain away safely. This multi-stage process is essential for extending the overall life of your air system components. Ensuring your filter has robust oil-separating features will prevent costly repairs and system downtime in the future.
How System Pressure Cycles Affect Filtration
The air system operates on continuous pressure cycles governed by the vehicle governor. When the compressor is loading, air is pushed through the filtration medium under high pressure. Once the target pressure is achieved, the system purges, reversing the airflow to blow out the collected moisture and regenerate the desiccant material.
This purging cycle is critical because it keeps the drying agent ready for the next compression phase. If the purge valve is faulty, the medium remains soaked and will quickly fail to protect the system. Regular inspections of both the pressure cycles and the purge operation will guarantee that your vehicle air system runs optimally.
Regular Maintenance Intervals for Fleet Safety
Fleet managers must establish strict maintenance schedules to replace each air dryer cartridge before it fails completely. Operating in humid climates or high-duty cycles accelerates desiccant wear, making frequent checks necessary. Failing to swap out these parts on time can lead to expensive emergency roadside repairs.
Most manufacturers recommend replacing these components at least once a year, preferably before the winter season begins. Cold temperatures will quickly freeze any remaining moisture in the lines, causing valves to stick. By staying ahead of this maintenance task, you ensure your fleet remains safe and compliant with highway regulations.
Key Features of High-Performance Cartridges
Choosing the correct replacement model requires a clear understanding of its technical specifications. A high-grade air dryer cartridge can significantly lower your long-term operational costs by protecting downstream valves from damage. Let us explore the critical attributes that distinguish superior products from standard models.
| Comparison Area | Standard Canister Options | Premium Filtration Models |
| Performance Type | Standard Molecular Sieve | Advanced Coalescing Media |
| Service Lifetime | Six to Twelve Months Max | Twelve to Twenty Four Months |
| Max Pressure Limit | One Hundred Fifty PSI | Two Hundred PSI Rating |
| Best Utilization | Light Commercial Use | Heavy Duty Fleet Operations |
Superior Water Stripping Efficiency Ratings
A top-tier air dryer cartridge must deliver exceptional water stripping capability under all driving conditions. The efficiency is determined by the quality of the internal molecular sieve, which targets moisture at a molecular level. High efficiency means that even during long hauls, the air delivered to your brakes remains clean.
When comparing products, look for certified drying efficiency ratings from reputable testing laboratories. Lower-quality brands might save you money initially, but they fail to extract moisture consistently during rapid compressor cycles. Ensuring your selected unit has verified water stripping performance protects your vehicle braking power.
Robust Oil Coalescing Technology Integration
Modern diesel engines often pass oily vapors into the air compressor, making standard filtration insufficient. An advanced air dryer cartridge with an integrated coalescing pre-filter is essential to trap these aerosolized oil droplets. This protection prevents oil from coating the desiccant beads and destroying their active surfaces.
Without this critical barrier, the drying agent becomes contaminated within a few weeks of heavy use. Once contaminated, the system will allow water to pass freely into your air tanks, causing system-wide issues. Choosing a model with dedicated oil coalescing capabilities is the smartest way to safeguard your heavy-duty equipment.
Structural Integrity and Pressure Resistance
The steel housing of the filter must withstand constant pressure fluctuations without cracking or leaking. High-quality manufacturers use thick-walled steel shells that are coated to resist road salt and corrosion. This robust construction ensures that the unit can handle pressures exceeding standard system limits during operation.
Internal seals and bypass valves must also be designed to resist blowout under extreme thermal cycles. Cheap canisters often suffer from seal degradation, leading to slow air leaks that overwork the compressor. Selecting a structurally sound unit guarantees that your air system maintains the precise pressure required for safe stops.
Universal Compatibility with Heavy Duty Trucks
Finding a replacement that perfectly fits your existing housing is crucial for a quick turnaround. Many leading brands design their units with universal spin-on threads to fit standard commercial truck air dryer assemblies. This compatibility ensures that fleet operators can stock a single model that works across different vehicle makes.
Always verify the thread size and seal diameter before purchasing a replacement online. While many canisters look identical from the outside, slight differences in thread pitch can prevent a proper seal. Choosing a universally compatible product simplifies inventory management while guaranteeing a perfect leak-free fit every single time.
Step-by-Step Replacement and Troubleshooting
Even the most durable air dryer cartridge will eventually reach the end of its useful lifespan and require replacing. Knowing how to recognize the warning signs of failure and executing a safe replacement is a vital skill for any truck owner. Let us examine the practical steps and troubleshooting techniques for this maintenance task.
Recognizing Symptoms of a Clogged Cartridge
The most obvious sign of a failing air dryer cartridge is the presence of liquid water in the wet tank during daily drains. If you pull the drain lanyard and a significant spray of water exits, the desiccant is saturated. Ignoring this warning sign can lead to sticky valves and potential freezing issues when temperatures drop.
Another common symptom is an overly active compressor that cycles on and off much more frequently than normal. This rapid cycling happens because a clogged filter restricts the airflow, building backpressure and confusing the governor. Replacing the clogged canister promptly restores balanced system pressure and protects the compressor.
Safety Precautions Before Starting Installation
Working on pressurized pneumatic systems requires absolute caution to prevent serious personal injury. Before attempting to spin off the old canister, you must completely drain all the air tanks using their manual valves. Attempting to remove a pressurized canister can cause it to fly off with explosive force, causing severe harm.
Ensure the parking brake is set and the wheels are securely chocked before sliding underneath the chassis. Wear appropriate safety glasses to protect your eyes from falling road debris and sudden blasts of residual air pressure. Taking these basic safety measures turns a potentially hazardous task into a simple, routine garage job.
Correct Torque Specifications and Sealing Tips
Clean the mounting base thoroughly to remove old grease, dirt, and corrosion before installing the new filter. Apply a thin film of clean engine oil to the new rubber sealing gasket to ensure a smooth, secure seal. This lubrication prevents the gasket from bunching up or tearing as you screw the canister onto the threaded stud.
Spin the canister on by hand until the gasket makes firm contact with the base, then tighten it further. Most manufacturers recommend adding an extra half to three-quarters turn to meet torque specifications. Avoid using heavy strap wrenches to tighten the canister, as over-tightening can crush the metal housing and cause air leaks.
Testing the System for Leaks After Assembly
Once the new unit is secure, start the engine and let the system build up to full operating pressure. Listen closely for any audible hissing sounds coming from the seal area, which indicate a loose installation. You can apply a simple mixture of soapy water around the base to check for growing bubbles that reveal tiny air leaks.
Allow the system to cycle fully until the purge valve activates with its characteristic loud blast of air. This purge indicates that the governor and the drying unit are communicating correctly and cycling as designed. A successful leak test confirms that your vehicle is ready to return to service with maximum stopping performance.
Conclusion
Maintaining a dry pneumatic system is essential for the longevity of your commercial vehicle. Upgrading to a premium air dryer cartridge ensures that your brakes remain responsive under the toughest winter conditions. By following this complete guide, you can confidently select a high-performing filter to keep your heavy fleet safe.
