Furnace filter replacement air flow direction: Easy Guide

Furnace filter replacement air flow direction is a crucial element of maintaining your home heating and cooling system. When you install the media in the wrong way, you restrict circulation and cause your utility bills to climb. Our simple guide will teach you how to read the arrows and ensure perfect installation today.

Understanding Furnace Airflow Basics

Managing your HVAC equipment requires a basic understanding of how climate control works in modern households. The furnace filter replacement air flow direction dictates how well your system captures airborne irritants. When you grasp this concept, you can keep your heating machinery running smoothly throughout the winter.

Why Correct Air Direction Matters

Ensuring the furnace filter replacement air flow direction is correctly set protects your blower motor from overheating. Dust can quickly accumulate on the sensitive internal parts if the media is put in backward. This oversight causes the machinery to work much harder, which can lead to expensive repair bills later.

Additionally, correct alignment maximizes the filtration capacity of the media itself. Most modern residential units use cardboard or fiberglass models designed to trap particles in a specific progressive order. Placing them correctly ensures that the largest particles are caught first without restricting the breeze.

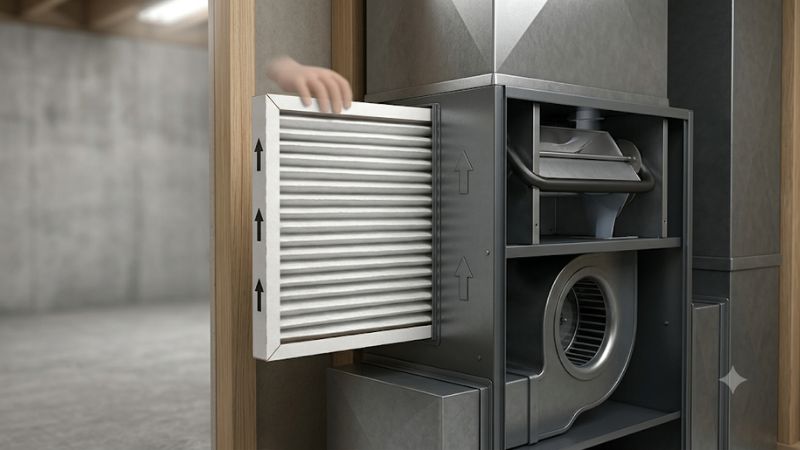

Reading the Airflow Arrow on Your Filter

When inspecting the perimeter of a standard residential HVAC filter, you will observe a small printed arrow. This indicator represents the path that the air currents must travel as they migrate toward the blower compartment. Homeowners should constantly orient this marker toward the furnace and away from the return duct.

Many homeowners experience difficulty because this indicator is exceptionally small and occasionally printed indistinctly. If you encounter trouble identifying the symbol, inspect the reinforced metal support backing. This wire grid must continuously face the heating unit itself, acting as a physical barrier against air pressure.

Consequences of Reverse Filter Installation

Inserting the media backward compromises its structural integrity under the strong operating pressure of the system blower. Over time, the fiberglass components can buckle or collapse directly into the blower compartment. This structural failure represents a severe hazard that permanently damages climate control assemblies.

Furthermore, backward installation accumulates debris rapidly on the unreinforced side of the media grid. This restriction starves the heat exchanger of crucial ventilation, causing frequent equipment short cycling. Consequently, your household will feel less comfortable while monthly utility expenses rise dramatically.

Identifying Your Furnace Setup

Determining your furnace filter replacement air flow direction depends heavily on the specific configuration of your heating unit. Every home is built differently, meaning your blower compartment might pull breezes from various angles. Identifying your equipment model will help you install the media correctly.

| Furnace Type | Airflow Direction | Arrow Direction | | Upflow | Bottom to top | Points up | | Downflow | Top to bottom | Points down | | Horizontal | Side to side | Points toward unit |

Upflow Furnace Air Flow Guide

An upflow configuration requires careful attention to the furnace filter replacement air flow direction during maintenance. In these models, cold room breeze is drawn in from the bottom vents and pushed upward through the heat exchanger. Therefore, you must make sure that the printed arrow on your filter points upward.

Technicians usually position the media slot at the lowermost section of the vertical heating cabinet. In alternative installations, the framework resides inside the return ductwork directly adjacent to the machinery base. Maintaining pristine cleanliness here ensures the rising draft remains powerful and unimpeded.

Downflow Furnace Direction Rules

Downflow configurations operate counter to upflow systems by forcing climate controlled air downward from the ceiling. Heating machinery using this design typically occupies upper level closets, utility rooms, or residential attic spaces. For these specific configurations, the media must point directly toward the floor.

The slot for downflow models is generally situated within the upper blower compartment. Since structural gravity assists this downward movement, maintaining an unobstructed path is essential for peak efficiency. Regularly renewing this media prevents heat accumulation at the uppermost portions of your utility cabinet.

Horizontal HVAC Unit Configurations

Horizontal systems are commonly installed in tight crawl spaces, basements, or spacious attics. These horizontal machines move breeze sideways, either from left to right or right to left. You must look closely at the ductwork connection to determine which side represents the incoming cold return ventilation.

Once you identify the entry side of the cold return ductwork, carefully slide the replacement media into place. The indicator on the cardboard frame must point away from this ductwork and toward the horizontal furnace chassis. This orientation ensures incoming drafts encounter the reinforced backing of the media.

Side-Mounted Return Air Configurations

In numerous properties, the return duct attaches directly to the side of the vertical furnace cabinet. This configuration requires homeowners to verify the exact direction of air movement before inserting the media framework. Guessing the movement of this lateral return duct often results in suboptimal household filtration.

To identify the correct path, trace the ductwork originating from the main residential living spaces. This intake draft consistently travels from those rooms directly into the central heating machinery. Recognizing this path allows homeowners to slide the fresh media into place with all indicator arrows pointed correctly.

Step-by-Step Replacement Process

Understanding the correct furnace filter replacement air flow direction is only half of the battle of home maintenance. You must also know how to safely access the equipment and perform the swap without damaging any parts. Follow these guidelines to make the entire process simple, fast, and completely safe.

Turning Off Your HVAC System Safely

Before verifying the furnace filter replacement air flow direction, you must shut down the power to your entire HVAC system. Operating a live machine while changing parts poses an electrical hazard and can damage the blower. Locate your main service switch on the side of the unit or flip the breaker at the panel.

Waiting a few minutes after turning off the power allows all the moving parts to come to a complete stop. This pause also prevents loose dust from being sucked into the open cabinet while the media is removed. Always prioritize safety by double checking that the thermostat screen is blank before you proceed.

Removing and Inspecting the Old Filter

Gently slide the old dirty media out of its designated slot, taking care not to shake loose debris into the air. Take a moment to look at the surface of the dirty material to evaluate your indoor environment quality. A dark grey layer indicates that the media has successfully captured a large volume of domestic dust.

If the extracted media appears warped, your system could be operating under excessive static pressure. Examine the perimeter of the frame for signs of particulate bypass, which occurs when air escapes around the cardboard edges. This assessment helps determine if a higher quality fit is required for future cycles.

Aligning and Inserting the New Filter

Pick up your brand new media and locate the printed indicator on the cardboard frame before sliding it inside. Align the indicator so it matches the correct path of the ventilation system you determined earlier. Push the frame gently into the slot, ensuring there are no gaps around the edges of the metal channel.

Once the replacement media is securely in place, replace the metal access cover or door to seal the system. Turn the electrical switch back on and set your thermostat to your desired home temperature. Listen closely to the initial startup sound to ensure that ventilation moves smoothly without any whistling noises.

Choosing the Right Filter and Maintenance

Getting the furnace filter replacement air flow direction right is easiest when you select the perfect product for your home. Buying high quality media that fits your system snugly prevents air bypass and maintains excellent static pressure. Let us explore the key factors to consider when purchasing new filters.

Finding Your Correct Filter Size

Knowing your furnace filter replacement air flow direction is useless if you buy a frame that does not fit your system. Check the side of your old media to find the printed dimensions, which are written as width by length by thickness. These measurements are crucial for ensuring a tight seal inside the blower cabinet.

If the dimensions are not printed on the old frame, use a measuring tape to find the exact size of the slot. A media frame that is too small will allow dirty drafts to bypass the filtration system completely. Conversely, a frame that is too large will not slide into the slot and could get damaged during insertion.

Understanding MERV and MPR Ratings

Minimum Efficiency Reporting Value, commonly called MERV, is a scale used to rate the effectiveness of domestic media filters. Ratings range from one to sixteen, with higher numbers indicating the ability to trap smaller particles. However, higher ratings also restrict ventilation more, requiring a powerful blower system.

For most standard residential systems, a MERV rating between eight and eleven offers the perfect balance. This range traps pollen, mold spores, and pet dander without putting excess stress on your heating blower. Always consult your equipment manual to ensure your system can handle higher efficiency ratings.

Recommended Filter Replacement Schedules

Regular filter replacement is essential for maintaining clean domestic air and protecting your climate control equipment. Standard one inch media filters should be changed every ninety days under normal living conditions. However, homes with pets or allergy sufferers may need to perform this chore every thirty to sixty days.

Thicker heating media models can last anywhere from six months to a full year before requiring a complete swap. Keeping a calendar reminder or checking the media visual condition monthly is the best way to stay on track. This simple habit keeps your heating machinery running efficiently and lowers utility costs.

Conclusion

In conclusion, mastering the furnace filter replacement air flow direction is a quick and effective way to protect your HVAC system. By paying attention to the arrow markings and replacing filters regularly, you ensure clean indoor air and lower energy bills. Keep this guide handy for your next routine home maintenance day.
