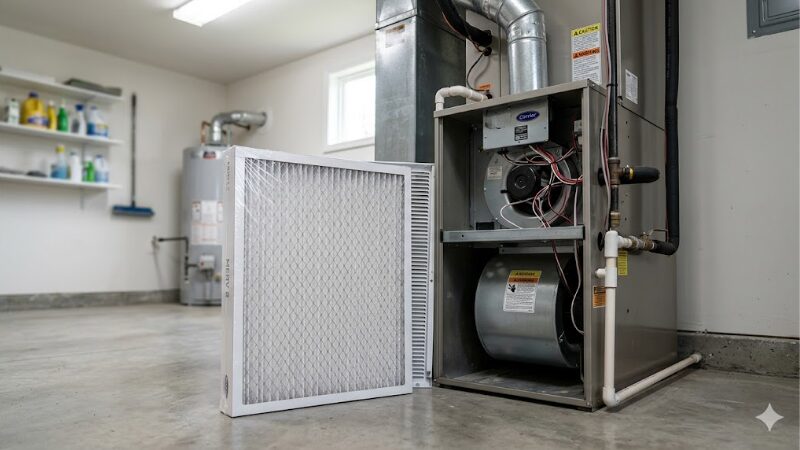

MERV 8 HVAC Filter plays a critical role in balancing mechanical protection and biological air purification within modern indoor climate control systems. In a typical heating, ventilation, and air conditioning (HVAC) setup, the system functions as the structural respiratory network of a building, continuously circulating and conditioning air throughout living and working spaces.
The Engineering Science of MERV 8 Ratings
MERV stands for Minimum Efficiency Reporting Value, a structural rating scale developed by the American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE under Standard 52.2). The scale ranks a filter’s ability to intercept airborne particles ranging in size from 0.3 to 10.0 micrometers (µm).
To earn a certified MERV 8 rating, the filter media must satisfy precise laboratory thresholds across three separate particle dimension classes:
- E1 Ultra-Fine Particles (0.3 – 1.0 µm): No mandatory efficiency target. Ultra-fine wildfire smoke, virus nuclei, and small bacteria strains pass through this filter.
- E2 Mid-Sized Particles (1.0 – 3.0 µm): Must capture greater than 20% of particles in this range. This includes standard pet dander flakes and fine auto exhaust particles.
- E3 Large Particles (3.0 – 10.0 µm): Must capture greater than 70% of particles. This includes everyday household dust, plant pollen grains, carpet lint, and mold spores.
Section 2: Material Construction and Fluid Aerodynamics
A MERV 8 filter does not rely on simple flat cardboard mesh; it utilizes a pleated geometry made from synthetic polymers, typically polypropylene or electrostatically charged polyester fibers.
The Pleated Geometry Advantage
By folding the filter fabric into a series of V-shaped pleats, manufacturers drastically increase the surface area of the filter media. A standard 1-inch thick MERV 8 pleated filter contains up to three times more surface area than a flat fiberglass filter of the same outer dimensions. This expansive surface area provides more physical contact points to intercept passing dust while leaving ample space for air to glide through freely.
Fluid Resistance and Static Pressure Calculations
Every air filter acts as a restriction barrier inside the ductwork, a metric known in HVAC engineering as initial pressure drop or resistance, measured in inches of water gauge (” w.g.).
If a filter is too dense (such as a MERV 11 or MERV 13), it causes a high static pressure drop. This forces the furnace blower motor to work significantly harder to pull air through the system, driving up electricity consumption, freezing A/C evaporator coils in the summer, and risking premature motor burnouts.
| Filter Material Class | Average Initial Static Pressure Drop | Equipment Stress Tier |
| Fiberglass Spun Mesh (MERV 2-4) | ~0.05″ to 0.07″ w.g. | Negligible strain; zero lung protection. |
| Standard Pleated (MERV 8) | ~0.08″ to 0.12″ w.g. | The Sweet Spot: Solid dust control with low airflow resistance. |
| High Efficiency Poly (MERV 11) | ~0.15″ to 0.18″ w.g. | Moderate resistance; demands a healthy, modern duct system. |
| Superior Residential (MERV 13) | ~0.22″ to 0.28″ w.g. | High resistance; can choke older or single-stage blower motors. |
Section 3: Comprehensive Financial Matrix (2026 Price Data)
The cost of MERV 8 filters varies based on the physical thickness (1-inch vs. 4-inch media slots), specific dimensions, and whether you purchase individual units or bulk multi-packs.
1. Market Pricing by Filter Dimension and Pack Size
| Filter Physical Dimensions | Individual Unit Price (USD) | 4-Pack Value Box Price (USD) | 6-Pack Bulk Box Price (USD) | Average Cost Per Filter (Bulk) |
| Standard (16″ × 25″ × 1″) | $12.50 – $15.00 | $34.00 – $42.00 | $44.00 – $52.00 | ~$7.30 – $8.60 |
| Standard (20″ × 20″ × 1″) | $11.95 – $14.50 | $32.00 – $38.00 | $42.00 – $48.00 | ~$7.00 – $8.00 |
| Small Size (10″ × 20″ × 1″) | $9.50 – $11.00 | $26.00 – $30.00 | $34.00 – $39.00 | ~$5.60 – $6.50 |
| Deep Media (16″ × 25″ × 4″) | $28.00 – $35.00 | $78.00 – $92.00 | N/A | ~$19.50 – $23.00 |
| Deep Media (20″ × 25″ × 4″) | $29.50 – $38.00 | $82.00 – $98.00 | N/A | ~$20.50 – $24.50 |
2. Long-Term Annual Maintenance Expense Forecast
Because filters accumulate dust mats, they must be regularly replaced to maintain proper HVAC airflow. Below is a projected annual cost comparison for a standard home using 1-inch filters vs. 4-inch deep media filters:
- 1-Inch MERV 8 Filter Strategy (Replaced every 90 days -> 4 filters per year):
- Purchasing individual filters: 14.00 × 4 = $56.00 per year.
- Purchasing a 4-pack bulk box: $34.00 to $42.00 per year.
- 4-Inch Deep Media MERV 8 Filter Strategy (Replaced every 6 months $ -> 2 filters per year):
- Purchasing individual filters: 32.00 × 2 = $64.00 per year.
- Purchasing a 4-pack bulk box (lasts 2 full years): 85.00 ÷ 2 = $42.50 per year.
The Deep Media Advantage: If your home’s furnace cabinet features a wide 4-inch slot, always choose it over a 1-inch filter. The extra 3 inches of depth contain massive pleat folds that increase airflow velocity while doubling the filter’s operational lifespan, reducing the hassle of frequent filter changes.
Section 4: Pros and Cons Analysis
Before stocking up on a multi-pack box of MERV 8 filters, it is important to evaluate how well their performance profile matches your specific home environment. These filters are designed to capture common airborne particles such as dust, pollen, and lint, making them suitable for general residential HVAC systems where moderate filtration is sufficient.
However, if your home has higher air quality demands—such as allergy sensitivity, pets, or urban pollution—you may need to consider whether a higher MERV rating would provide better protection. It is also essential to ensure that your HVAC system can handle the airflow resistance associated with the filter, as overly restrictive filters can reduce system efficiency.
The Advantages (Pros)
- Safe for All HVAC Equipment: The low pressure drop (~0.10″ w.g.) makes them perfectly safe for virtually any residential configuration, from 30-year-old legacy furnaces to modern high-efficiency heat pumps.
- Excellent Cost-to-Performance Ratio: At bulk prices under $9 per filter for 1-inch models, it is the most economical way to keep your system clean and protected.
- Strong Basic Particle Catching: Keeps home surfaces clean by catching up to 70% of coarse household dust, carpet fibers, and seasonal outdoor pollen.
- Extended Furnace Lifespan: By capturing dust before it can settle on internal blower wheels or cooling coils, it prevents system failures and avoids costly emergency repairs.
The Disadvantages (Cons)
- Inadequate for Heavy Smoke: If you live in regions prone to seasonal wildfire smoke, the open weave of a MERV 8 media layer lets fine combustion soot ($PM_{2.5}$) pass through completely.
- Poor Pathogen Defense: It cannot intercept microscopic virus droplets or airborne bacteria nuclei, making it less effective for homes with immunocompromised residents.
- Incomplete Odor and Chemical Control: It treats only solid physical particles. It cannot capture pet urine smells, cooking odors, or paint volatile organic compounds (VOCs), which pass right through the synthetic fibers.
Section 5: Step-by-Step Replacement and Alignment Protocol
Replacing an HVAC air filter is a simple task, but incorrect installation can cause air to bypass the filter completely, negating its benefits.
Step 1: Power Down the System
Turn your thermostat to the “Off” position. Never pull out an old air filter while the furnace blower fan is actively running, as the vacuum pressure can pull loose dust bunnies directly into the exposed fan housing.
Step 2: Observe the Airflow Direction Arrow
Examine the outer cardboard border of both your old filter and the new MERV 8 filter. You will find a printed Airflow Direction Arrow.
The arrow must point in the exact direction the air travels—away from your return air duct and toward the blower fan/furnace engine. Installing a pleated filter backward causes the internal wire supports to face the wrong way, which can cause the filter to bow or collapse under pressure.
Step 3: Check for Gap-Free Fitment
Slide the new filter into the cabinet slot. Ensure the filter fits securely within the frame without buckling. If there are noticeable gaps along the sides, air will take the path of least resistance, bypassing the filter entirely and carrying dirty air into your system. If needed, apply thin foam weatherstripping tape along the edge of the access door to ensure a tight, leak-free seal.
Don’t miss these related articles we think you’ll enjoy:
Conclusion
The MERV 8 HVAC filters remains the industry-standard benchmark for general residential and light commercial air filtration. With low airflow resistance and a pleated design, it helps trap dust, pollen, and mold without straining HVAC systems. Costing about $12–$15 each, it is an affordable way to maintain clean air and protect equipment. MERV 8 is a safe, reliable choice for most homes.
