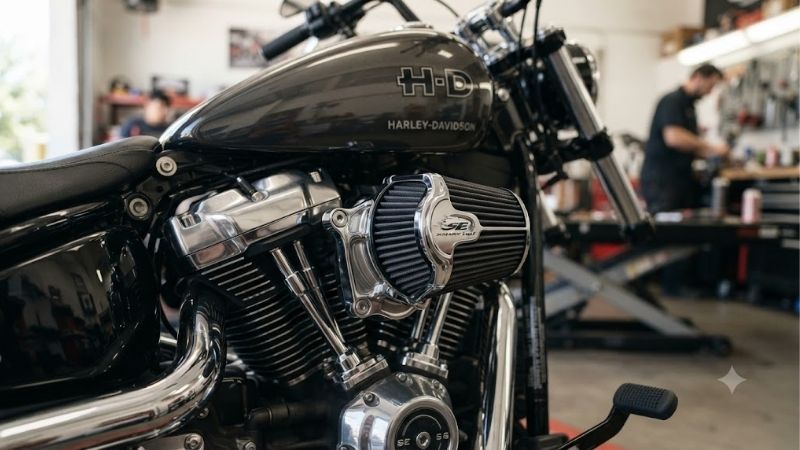

Screamin eagle air cleaner upgrades are the ultimate way to unlock your Harley-Davidson’s true performance. If you want to maximize horsepower and enjoy a much deeper exhaust note, installing this specialized kit is the perfect weekend project. Our detailed, step-by-step DIY guide will walk you through every single step of this simple task today.
Preparation and Tools Needed for Your Screamin Eagle Air Cleaner
Embarking on a motorcycle upgrade journey requires not only the right mindset but also a thoroughly organized workspace and a clear understanding of the components involved. Upgrading your air intake system is one of the most cost-effective modifications you can make to your Harley-Davidson, as it directly influences how efficiently your engine breathes and combusts fuel. Before you pick up a wrench, taking the time to properly prepare your environment, verify specifications, and gather premium tools will prevent frustrating delays and ensure a flawless execution.
Choosing the Right Screamin Eagle Air Cleaner Kit for Your Ride
Selecting the perfect screamin eagle air cleaner kit for your specific motorcycle is the foundation of this entire performance upgrade project. Harley-Davidson manufactures several variations of this famous intake system, including the classic round Stage I kit, the forward-facing Heavy Breather, and the high-flow Extreme Wedge. Each of these styles offers unique aesthetic appeal and slightly different airflow characteristics, meaning you must align your personal style preference with your bike’s engine configuration. Make sure to choose a kit that highlights your custom look while supplying the necessary high-volume airflow.
Additionally, it is critical to check your motorcycle’s year, model family, and throttle body size before finalizing your purchase because a kit designed for a Milwaukee-Eight engine will not fit a Twin Cam or Evolution motor. Decide whether you prefer an open-element look or want to retain your stock outer cover for a sleeper appearance. Taking these factors into consideration ensures you invest in a compatible kit that will deliver the exact power boost and visual impact you desire, making it a highly rewarding DIY project.
Essential Tools and Supplies for a Smooth Installation
Having the proper tools laid out on your workbench before you start is the secret to a stress-free and professional-grade installation process. Trying to make do with incorrect wrench sizes or low-quality drivers can easily lead to stripped bolt heads, scratched chrome surfaces, or damaged engine components. For this installation, standard hand tools are perfectly sufficient, but utilizing high-quality items designed specifically for motorcycle maintenance will make the job much faster and safer. Investing in a reliable, calibrated torque wrench is especially vital because overtightening bolts into your aluminum throttle body can permanently strip delicate threads.
To ensure a flawless DIY experience, we highly recommend assembling these essential tools and supplies before beginning your work:
- T27 and T40 Torx Drivers: You will need a robust Torx set to remove the stock outer cover and backing plate bolts safely. For maximum precision, you should get a professional-grade set like the Neiko Pro Torx Bit Socket Set on Amazon to avoid damaging your hardware.
- Allen/Hex Wrench Set (Standard sizes): Essential for mounting the new heavy-duty brackets and backing plate. Consider upgrading to a durable set of Bondhus Ball End Allen Keys on Amazon for easy access at difficult angles.
- Calibrated Torque Wrench (Inch-Pounds): This tool is vital for tightening breather bolts and mounting screws to exact factory specs. We suggest using a highly rated click-style wrench like the Lexivon 1/4-Inch Drive Torque Wrench on Amazon.
- Medium-Strength Threadlocker (Blue): Applying a small drop of threadlocker to every single mounting screw is essential to keep them from vibrating loose over time. Be sure to pick up a fresh bottle of Loctite Threadlocker Blue 242 on Amazon.
- Clean Microfiber Cloths and Throttle Body Cleaner: Excellent for wiping away old oil residue and dirt from the intake tract. A premium pack of Amazon Basics Microfiber Cleaning Cloths will keep your chrome surfaces completely scratch-free.
Safety Precautions and Workspace Setup Before You Begin
Safety should always remain your absolute highest priority whenever you are working on your motorcycle’s fuel and intake systems. Because you will be working in close proximity to the fuel injectors, throttle body, and hot engine components, you must take specific precautions to prevent accidents. Start by parking your motorcycle on a solid, level surface and securing it on a heavy-duty lift or stable kickstand to completely eliminate the risk of the bike tipping over. Always ensure that the engine has cooled down entirely to room temperature to prevent severe burns.
Furthermore, it is highly recommended to disconnect your motorcycle’s negative battery cable before starting work to prevent any accidental electrical shorts or fuel pump priming. Work in a well-ventilated area, free of open flames or sparks, as gasoline vapors can easily escape from the exposed intake tract during the swap. Lay out a soft, clean fender cover over your fuel tank to protect its paint job from dropped tools or accidental scratches. Once your workspace is clean, quiet, and well-lit, you are ready to begin the swap.
Step-by-Step Guide to Installing Your Screamin Eagle Air Cleaner
Now that your workspace is fully prepared and your premium tools are neatly organized, you can confidently begin the physical installation process. This hands-on procedure is highly logical and straightforward, but it requires patience, attention to detail, and a strict adherence to proper torque specifications. By systematically removing the restrictive factory intake and replacing it with the high-flowing aftermarket assembly, you will immediately improve your engine’s efficiency and overall responsiveness. Let us dive into the precise, step-by-step sequence required to execute this popular upgrade.
Step 1 and Step 2: Removing the Stock Air Cleaner Assembly
Step 1: Remove the Outer Cover and Filter Element. Begin by using your T27 Torx driver to remove the central bolt holding your stock outer cover in place, taking care to support the cover with your hand so it does not drop onto your floorboards. Once the outer cover is removed, set it aside on a soft microfiber cloth to prevent any cosmetic damage. Next, remove the mounting screws holding the stock paper filter element to the backing plate, and slide the filter out of its channel. Examine the old filter for heavy dirt or oil contamination before proceeding.
Step 2: Remove the Backing Plate and Breather Bolts. Locate the two large breather bolts that vent the cylinder heads directly into the stock backing plate assembly. Using an appropriate wrench, carefully loosen and remove these breather bolts, keeping a close eye on the small washers and rubber O-rings behind them. Next, remove the remaining small screws securing the backing plate to the throttle body. Gently pull the entire stock backing plate away from the intake manifold, and immediately cover the open throttle body throat with a clean, lint-free cloth to ensure no hardware falls in.
Step 3 and Step 4: Installing the New Backing Plate and Seals
Step 3: Clean the Intake Surface and Prep the Gaskets. Before installing any new hardware, use a clean microfiber cloth sprayed with mild throttle body cleaner to carefully wipe down the mating surface of the throttle body and the cylinder head breather ports. Ensure all traces of old gasket material, grease, and carbon buildup are completely eliminated. Take your new gaskets from your screamin eagle air cleaner kit and align them carefully against the throttle body. Ensure that the vacuum ports and mounting holes match perfectly, as even a minor misalignment can cause a severe air leak.
Step 4: Mount the High-Flow Backing Plate. Gently position the new heavy-duty backing plate over the throttle body, aligning it with the mounting holes and cylinder head breather ports. Insert the new high-flow breather bolts through the backing plate and into the cylinder heads by hand to avoid cross-threading. Next, insert the mounting screws through the plate and into the throttle body. Once all hardware is started by hand, use your torque wrench to tighten the throttle body screws to 55 inch-pounds, followed by torqueing the large breather bolts to 120 inch-pounds to prevent oil leaks.
Step 5 and Step 6: Mounting the Filter Element and Cover
Step 5: Install the New High-Flow Filter Element. Take your premium synthetic filter element from the kit, ensuring that the rubber sealing gasket on the back of the filter is seated perfectly in its groove. Position the filter element over the backing plate, aligning the mounting holes carefully. Apply a single drop of blue medium-strength threadlocker to each of the small filter mounting screws. Tighten these screws in a star pattern to ensure even pressure across the rubber gasket, final-tightening them to 55 inch-pounds using your accurate torque wrench to establish a reliable, airtight seal.
Step 6: Reinstall the Outer Cover and Inspect Your Work. If your kit utilizes a custom trim insert or an open-face cover, position it carefully over the front of the filter element. For those reusing the stock outer cover, slide it over the new high-flow filter and align the central mounting hole. Apply a drop of blue threadlocker to the main cover bolt, insert it, and tighten it securely to factory specifications. Once everything is secured, step back and conduct a thorough visual inspection, ensuring there are no pinched gaskets, loose bolts, or tools left near the engine.
Performance Analysis and Maintenance of Your Screamin Eagle Air Cleaner
Installing a high-performance intake system is only the first phase of transforming your motorcycle’s operating characteristics and longevity. To maximize the long-term return on your investment, it is essential to understand how this upgrade affects engine dynamics, what benefits it brings, and how to maintain it properly. A premium intake drastically alters the air-to-fuel ratio, meaning that maintaining the system and paired tuning are key to sustaining peak horsepower gains over thousands of miles. Let us examine the balanced performance characteristics of this setup.
Pros and Cons of the Screamin Eagle Air Cleaner System
Upgrading to a screamin eagle air cleaner system offers an array of substantial advantages for any motorcycle enthusiast seeking enhanced performance and style. The primary benefit is a dramatic increase in airflow volume, which allows your engine to draw in more oxygen, resulting in a noticeable boost of up to five to ten horsepower when paired with a proper fuel tune. Additionally, this kit provides a much deeper, throatier intake growl under acceleration, giving your bike a more aggressive personality. The washable and reusable synthetic filter element also saves you money over time, eliminating the need for paper filters.
However, there are a few potential drawbacks that you should carefully consider before making this high-flow upgrade. Because these filters are designed for maximum airflow, open-element styles expose the filter medium directly to heavy rain, which can pull moisture into the engine unless you utilize a specialized water-resistant rain sock. Furthermore, the massive increase in airflow will lean out your engine’s fuel mixture, meaning that you must install an EFI tuner or get a professional dyno tune to prevent overheating. Weighing these factors helps you make an informed decision and prepare your bike properly.
Pro Tips and Crucial Mistakes to Avoid During Installation
Even experienced home mechanics can benefit from a few insider secrets to make the installation of their new intake system seamless and reliable. First, always use a high-quality threadlocker on every single bolt, as the intense V-twin vibration of a Harley-Davidson will easily back out untreated fasteners, which can cause severe engine damage. Second, ensure that you do not over-oil your filter element if you use a wet-style filter; excess oil will quickly build up on your intake sensors, leading to erratic idling. Lastly, always keep a spare rain sock handy for unexpected storms.
Conversely, there are several common errors that you must actively avoid to protect your engine and ensure optimal performance. The absolute biggest mistake is over-tightening the breather bolts, which can easily crack the cylinder head casting or strip the delicate threads in the aluminum engine block. Another common error is failing to replace or properly align the backing plate gasket, which creates a vacuum leak that causes rough idling and popping during deceleration. Finally, never clean your synthetic filter element with compressed air or harsh solvents, as this will permanently tear the microfibers.
Long-Term Maintenance and Cleaning for Optimal Performance
To ensure your high-flow intake continues to deliver maximum horsepower and fuel efficiency, establishing a regular maintenance schedule is absolutely critical. Over time, your filter element will inevitably accumulate road dust, pollen, and oily residue from the engine breathers, which will gradually restrict airflow and reduce performance. We recommend inspecting your filter element every five thousand miles, or more frequently if you regularly ride in dusty, dry, or rural environments. A dirty filter forces your engine to work harder to pull in air, which can negatively impact throttle response and fuel economy.
When it comes time to clean your washable filter, always use a dedicated filter cleaner kit designed specifically for synthetic high-flow elements. Spray the cleaning solution generously over the entire surface, let it sit for ten minutes to dissolve the grease, and then rinse it gently with low-pressure tap water from the inside out. Allow the filter to air dry completely overnight before reinstalling it; never use a hairdryer or heat gun, as extreme heat can shrink and destroy the filter media. Keeping your filter pristine ensures that your engine always breathes clean, cool air.
Conclusion
Installing a screamin eagle air cleaner on your Harley-Davidson is one of the most rewarding upgrades you can perform yourself, instantly unlocking greater horsepower, a deeper exhaust sound, and improved throttle response. By following this detailed guide and taking your time during the installation, you can achieve professional-grade results right in your own garage. Click over to browse our highly recommended selection of premium tools, threadlockers, and specialized filter cleaning kits to ensure your ride always performs at its absolute peak.
