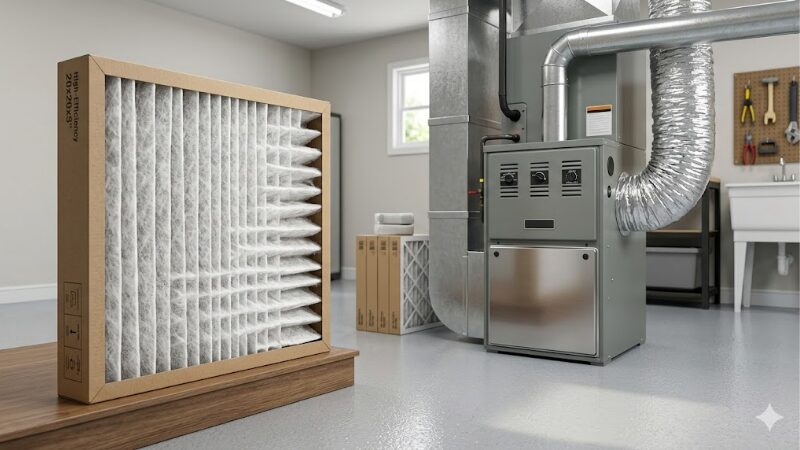

The Comprehensive Guide to 20x20x5 Air Filters

20x20x5 Air Filters when it comes to maintaining a clean, healthy home environment, your HVAC system plays a far bigger role than just regulating temperature. It acts as the central respiratory system of your living space. For homeowners whose systems utilize a 20x20x5 air filter, you possess a highly efficient advantage over standard 1-inch filters.

Understanding the Anatomy of a 20x20x5 Air Filter

The numbers 20x20x5 represent the filter’s nominal size measured in inches: Length x Width x Thickness. However, the most critical mistake homeowners make is assuming these numbers represent the exact, down-to-the-millimeter measurements.

Nominal vs. Actual Dimensions

In the air filtration industry, “nominal size” is a rounded, simplified label used for marketing and categorization. The actual size is the true, precise physical dimension of the filter casing. If a filter is even a fraction of an inch too large, it will not slide into your furnace’s media cabinet. If it is too small, air will bypass the filter entirely, allowing dust to accumulate directly on your expensive HVAC coils.

For a traditional 20x20x5 filter slot, the true depth is rarely a full 5 inches. Instead, manufacturers build them with an average thickness of 4.38 inches.

Critical Step: Before ordering a replacement online, pull out your current filter and read the fine print. Look for the “Actual Dimensions” printed directly underneath the large nominal numbers, or take a tape measure to the outer frame yourself.

Why the 5-Inch Depth is Superior to Standard 1-Inch Filters

If you have ever lived in a home with a flat, 1-inch fiberglass filter, you know the routine: you must replace it every 30 to 90 days, and it often looks flimsy. Upgrading to or utilizing an engineered 5-inch deep-pleat media cabinet provides significant operational benefits.

Massive Dust-Holding Capacity

A 5-inch filter is not just a thick block of material; it consists of a continuous sheet of synthetic or fiberglass media folded into deep pleats. This layout dramatically increases the total surface area of the filter material. Because there is more physical fabric available to catch debris, a 20x20x5 filter can store a massive amount of dust, lint, and pet dander before becoming restricted.

Lower Pressure Drop and Easier Airflow

A common misconception is that a thicker filter makes it harder for air to pass through. In reality, the opposite is true. Because a pleated 5-inch filter spreads the air over a much larger surface area, the resistance to airflow—known in the HVAC industry as static pressure drop—is lower than that of a restrictive, tightly bound 1-inch pleated filter. Your system’s blower motor does not have to work as hard to pull air through, which saves energy and prevents component wear.

Extended Service Lifespan

While a 1-inch filter can clog up in a month or two, a high-capacity 20x20x5 filter is designed to last anywhere from 6 to 12 months under normal residential conditions. This long maintenance interval means less hassle for you and fewer trip-ups remembering to switch out your filters.

Demystifying Filter Ratings: MERV, MPR, and FPR

When shopping for a 20x20x5 filter, you will encounter three different rating scales depending on the brand. The industry standard scale is MERV, but certain major corporations use proprietary rating systems.

MERV (Minimum Efficiency Reporting Value)

MERV is the universal, independent scale ranging from 1 to 16 for residential filters. It evaluates a filter’s ability to trap microscopic particles between 0.3 and 10 microns in size.

• MERV 8: The baseline standard for residential cleanliness. It easily captures dust, lint, pollen, and dust mites. It is an excellent, cost-effective choice for homes without pets or severe allergy sufferers.
• MERV 11: A step up into superior filtration. It traps pet dander, car emissions, and mold spores down to 3 microns. This is highly recommended for pet owners and those living in areas with high pollen counts.
• MERV 13: The residential peak. It captures bacteria, smoke particles, and virus carriers. This rating provides hospital-grade filtration ideal for anyone managing asthma, respiratory sensitivities, or living in regions prone to seasonal wildfire smoke.

Cross-Referencing Brand Rating Systems

If you purchase brands like Honeywell or Filtrete at big-box retailers, you will notice they print their own metrics alongside or instead of MERV. Use this breakdown to cross-reference performance accurately:

Brand Compatibility and Replacement Options

The 20x20x5 filter size is widely supported by premium HVAC manufacturers. Because of this, third-party filter specialists design replacement filters tailored to fit specific branded media enclosures.

Honeywell Media Air Cleaners

The traditional 20x20x5 size is a drop-in replacement for the highly popular Honeywell FC100A1011 and FC200E1011 systems. Reputable replacement brands like Filterbuy, Nordic Pure, and AIRx construct exact-fit duplicates using electrostatically charged synthetic gradient media supported by moisture-resistant beverage board frames and metal wire grids to prevent bowing under high air pressures.

Lennox, Carrier, and Bryant Systems

This size also functions as an OEM or aftermarket replacement for various specific filter enclosures, including the Lennox X0585, as well as similar configurations from Carrier and Bryant. The universal availability of this size makes it easy to find high-quality options without paying premium dealer pricing.

How to Change Your 20x20x5 Air Filter: A Step-by-Step Procedure

Because a 5-inch media filter is structural and deep, replacing it requires a slightly different approach than sliding a thin 1-inch cardboard frame into a wall grate. Follow this logical sequence to perform a clean, safe replacement.

1.Turn Off the HVAC System:Safety Prerequisite.

Locate your thermostat and turn your heating or cooling system completely OFF. For ultimate safety, switch off the dedicated circuit breaker or the toggle switch located directly on the furnace unit. Never pull a filter while the blower fan is actively running, as this can suck loose debris straight into the uncovered motor.

2.Open the Media Cabinet Access Door:1-2 Minutes.

Locate the external media housing cabinet installed inline between your return air ductwork and the furnace itself. Unlatch, slide, or unclip the access panel door and set it aside safely.

3.Note the Scent and Airflow Direction:Critical Orientation.

Look closely at the old filter before sliding it out. Look for the printed arrows indicating the direction of airflow. The arrows should point away from your return air ducts and toward the furnace or air handler blower unit. Take a mental note or mark the cabinet exterior with a marker for future reference.

4.Extract and Inspect the Old Filter:Clean Cleanup.

Gently slide the old filter out of the channel. Keep it steady to avoid shaking loose dust clouds into your utility room. Place it immediately inside a large trash bag for disposal. Take a moment to peek inside the empty cabinet slot to ensure no loose debris or insulation is resting on the bottom tracking channel.

5.Insert the Fresh 20x20x5 Replacement:Secure Alignment.

Unpack your new filter. Orient the arrow printed on the outer cardboard frame so that it points in the exact same direction of airflow as the old one (toward the system fan). Carefully slide the filter down the metal tracking channels until it sits flush against the rear seal.

6.Reseal and Power Up:System Restart.

Replace the cabinet access panel or door securely, ensuring all latches or compression clips are tight to prevent raw air from leaking in. Restore power at the unit or breaker switch, turn your thermostat back to your desired settings, and note down the current date so you can track its lifespan accurately.

Maintenance Tips for Optimal Performance

To extract maximum value out of your 20x20x5 air filter investment, employ these professional homeowner strategies:

• Check At the Six-Month Mark: While many deep-pleat filters can push to 9 or 12 months, do a visual check at month six. If you have multiple heavy-shedding pets, a dusty remodel project, or a high-occupancy home, your filter might require a change sooner than expected.
• Avoid Budget Fiberglass Substitutes: Do not attempt to use low-efficiency, non-pleated alternative materials. Stick to high-quality pleated poly-blend or synthetic media that offer structural stability, clean edge seals, and electrostatic properties.
• Keep Your Return Grates Clear: An advanced filter cannot purify your indoor environment if your home’s main return vents are blocked by furniture, heavy drapes, or thick carpets. Ensure all ventilation pathways remain entirely unobstructed.

By paying attention to your actual dimensions, matching your household needs to the correct MERV rating, and executing a clean swap twice a year, your 20x20x5 air filter will keep your indoor air safe, clean, and perfectly comfortable.

You may also like:

• Best air purifier for home with pets
• 20x25x5 furnace filter

Conclusion

Upgrading your HVAC system to accept a 20x20x5 air filter is a highly effective investment in your property’s mechanical longevity and your family’s respiratory health. By offering a massive, deep-pleated surface media area that easily outperforms flimsy 1-inch alternatives, this high-capacity filter delivers superior dust retention and smooth, unrestricted airflow for up to a full year.
