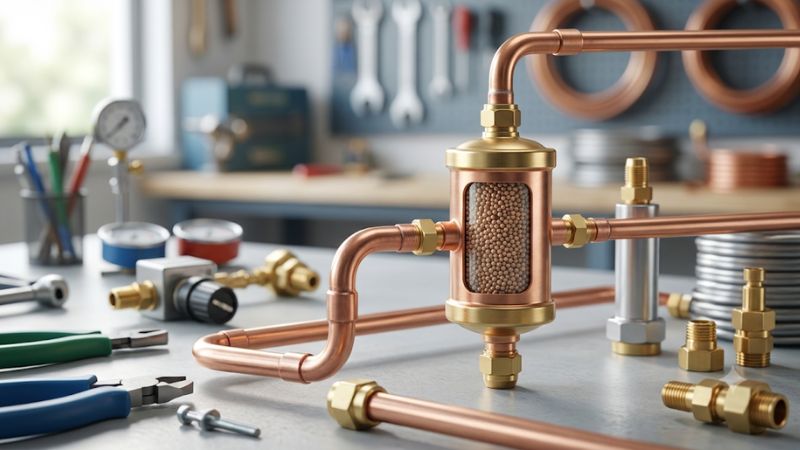

Most homeowners never think about the small metal canister tucked into their outdoor condensing unit until something goes wrong. Yet that component, the filter drier, quietly determines whether the rest of an HVAC system runs smoothly or slowly grinds itself down from the inside out. Rather than treating it as an isolated refrigeration part, it helps to think of the filter drier as a system-level safeguard: it interacts with the compressor, the metering device, the line set, and even the thermostat’s ability to hold a setpoint. When it fails or is mismatched, the symptoms often show up somewhere else entirely, which is why so many technicians misdiagnose the problem on the first visit.
As an Amazon Associate we earn from qualifying purchases at no extra cost to you. Product prices and availability are accurate as of the date shown and are subject to change.
🛒 Best Price Today on Amazon
Prime members get fast, free shipping on everything above, plus member-only deals. New members get a 30-day free trial — cancel anytime.
Why a Filter Drier Matters to the Whole HVAC System, Not Just the Refrigerant Loop
It’s tempting to describe a filter drier purely in chemistry terms, but its real value shows up in how it protects every other part of the system it’s connected to. Contamination anywhere in the refrigerant circuit eventually becomes a system-wide problem: the compressor works harder, the metering device meters less accurately, and airflow across the coil suffers as a result.
Guarding the Compressor Against Slow, Invisible Damage
Trace moisture is the quiet killer of compressors. Once water gets into the loop, it reacts with the lubricating oil and begins forming acidic compounds almost immediately. Left unchecked, those acids attack copper motor windings and internal bearing surfaces over months or years, not overnight. A functioning filter drier intercepts that moisture at the source, holding it in a desiccant bed before it ever reaches the compressor shell. Systems that skip this protection, or run it past its useful life, tend to show compressor failures that seem to come out of nowhere but are actually years in the making.
Stopping Debris Before It Reaches Sensitive Components
Every brazed joint, cut line, and valve installation introduces the possibility of stray metal shavings, flux residue, or dirt entering the system. None of that debris belongs anywhere near a metering device, whose orifice or port can be a fraction of a millimeter wide. The solid-core filter media inside the drier physically screens this material out, acting less like a filter in the disposable sense and more like a permanent trap that keeps the rest of the circuit clean for the life of the component.
Interrupting the Acid-Formation Cycle Early
Heat, residual moisture, and refrigerant oil don’t need much time together under pressure before they start producing corrosive byproducts. Those acids don’t stay contained to one area; they circulate with the refrigerant and etch away at whatever metal they touch, including motor windings deep inside a hermetic compressor. A properly sized drier is designed to adsorb these acidic molecules alongside moisture, effectively cutting the reaction off before it can spread through the rest of the system.
Keeping the System Efficient From the Ground Up
A refrigerant circuit that’s free of moisture, acid, and debris moves fluid with minimal resistance. That translates directly into a compressor that isn’t laboring against unnecessary friction, lower electricity draw, and a system that reaches its rated cooling capacity instead of falling short of it. In practical terms, a clean, correctly matched filter drier is one of the cheapest ways to protect the efficiency numbers printed on the equipment’s nameplate.
Matching a Filter Drier to Your Specific HVAC Configuration
There is no universal filter drier that fits every system. Getting the selection right means looking at where in the circuit it will sit, how it connects to existing lines, what desiccant chemistry pairs with your refrigerant, and whether it will physically fit where it needs to go.
Liquid Line vs. Suction Line: Different Jobs, Different Placement
A liquid line drier sits ahead of the expansion valve or metering device, and its job is largely preventative — stopping moisture and fine debris from ever reaching that delicate component. This is the standard choice for routine maintenance and new installations. A suction line drier, by contrast, is typically installed after a compressor burnout or major system failure. It sits before the compressor’s suction port and is built with a larger capacity core to handle the heavier contamination load that follows a catastrophic failure, including acid and larger debris carried in low-pressure vapor.
Connection Types: Sweat Fittings vs. Flare Fittings
Two connection methods dominate residential installs. Sweat connections are brazed or soldered directly onto copper tubing, producing a permanent joint that’s extremely leak-resistant but requires an open flame and proper technique. Flare connections use a threaded brass nut compressed onto a flared tube end, which makes them a practical option for technicians who need a serviceable, no-flame connection or a faster field replacement. Most residential systems use 3/8-inch line sizing, though it’s always worth confirming against the existing line set before ordering a replacement part.
Desiccant Chemistry Has to Match the Refrigerant in Use
Not every desiccant blend is compatible with every refrigerant. Systems running R-410A behave differently from older R-22 systems, and using the wrong core chemistry can reduce moisture capacity or even react poorly with certain refrigerant blends. Look for cores built from a combination of molecular sieve and activated alumina, which together offer strong water-holding capacity while still trapping acidic compounds — a pairing that has become something of an industry standard for good reason.
Don’t Overlook Physical Clearance in the Cabinet
It’s easy to focus entirely on port size and desiccant type and forget that the drier still has to physically fit inside the condenser cabinet or line set run. Measure the available space before ordering — some driers are considerably longer than the part being replaced, and cramming one into a tight corner can stress fittings or make future service access nearly impossible. A few minutes with a tape measure before purchase avoids a frustrating return trip to the supply house.
| Feature | Liquid Line Drier | Suction Line Drier |
|---|---|---|
| Typical Location | Before the expansion valve | Before the compressor inlet |
| Primary Purpose | Preventative maintenance | Post-burnout cleanup |
| What It Filters | Moisture and acid | Heavy debris and acid |
| Refrigerant State Handled | High-pressure liquid | Low-pressure gas |
Installation and Troubleshooting: Getting the System Integration Right
A filter drier that’s correctly sized but poorly installed can still cause problems. Direction, heat management during brazing, and ongoing diagnostic checks all matter just as much as picking the right part number.
Respect the Flow Arrow During Installation
Every filter drier has a flow direction arrow stamped or printed on its body, and it isn’t a suggestion. Installing the unit backward restricts refrigerant flow and can severely limit its filtering effectiveness, sometimes causing symptoms that mimic an undersized line or a failing compressor. Beyond direction, think about accessibility: mounting the unit somewhere a technician can reach easily during future service calls saves time — and money — down the road.
Protecting the Core From Heat During Brazing
Sweat-style driers are vulnerable during installation because the desiccant core inside can be damaged by excessive heat while soldering the connections. A simple trick that many experienced installers use is wrapping a wet rag around the drier body to draw off heat before applying a torch to the joint. Keep the flame focused on the pipe and fitting rather than the drier shell itself, let the joint cool naturally afterward, and resist the urge to quench it with cold water — rapid temperature swings can create tiny stress fractures in the metal that lead to leaks later.
Reading the Signs That a Drier Needs Replacement
One of the most reliable field diagnostics is a simple touch test: under normal operation, the inlet and outlet of a liquid line drier should feel roughly the same temperature. A noticeably cooler outlet is a strong sign that the desiccant core is partially clogged and restricting refrigerant flow, which will show up elsewhere as reduced cooling capacity or longer run times. As a general rule, replace the drier any time the refrigerant circuit is opened for repair or recharge — once exposed to open air, the desiccant material starts absorbing ambient moisture almost immediately, and reusing an old core defeats the purpose of servicing the system in the first place.
Building Filter Drier Checks Into Routine System Maintenance
A filter drier shouldn’t be a “set it and forget it” part. During annual tune-ups, inspect the outer shell for corrosion, oil staining, or physical damage, all of which can hint at a developing leak. Confirm that system pressures fall within normal range and that there’s no evidence of a hidden restriction. Folding this check into a broader annual HVAC inspection — alongside coil cleaning, refrigerant charge verification, and electrical checks — catches problems while they’re still cheap and easy to fix.
The Bottom Line on Filter Drier HVAC Maintenance
Treating the filter drier as part of the whole HVAC system, rather than an isolated refrigeration accessory, changes how you approach both selection and troubleshooting. Choose the correct type and size for the location in the circuit, match the connection style and desiccant chemistry to your equipment, install it with attention to flow direction and heat protection, and replace it every time the system is opened. Handled this way, a small and inexpensive component ends up protecting the most expensive part of the system — the compressor — for years longer than it would otherwise last.
Top-Rated Air Filters Worth Considering
Alongside refrigerant-side filtration, air-side filters play their own role in keeping an HVAC system running efficiently. The following pleated, electrostatic options from Filtrete and Filterbuy are well-reviewed choices for reducing dust and lint buildup across common sizes:
- Filtrete and Filterbuy pleated filters available in 14x30x1, 20x20x1, 16x25x1, 16x20x1, and 16x30x1 sizes
- Electrostatic pleated construction designed to capture household dust and lint
- MERV-rated for measurable filtration performance
- Priced from roughly $27.96 to $49.96 depending on size and brand
- Multiple listings available with Amazon Prime eligibility for faster shipping
Related Guides
- 12x12x1 Air Filter: Top Picks for Clean Indoor Air Flow
- Shop-vac 90398 filter: High Efficiency Replacement Guide
- Best HVAC Filters 16x25x1 Top Picks & Ultimate Buying Guide
- Lowes air filters: Choose the best for your home needs
- 16x20x1 Air Filter: Ultimate Guide for Home HVAC Success
Frequently Asked Questions
What does a filter drier actually do in an HVAC system?
It performs three jobs: it filters particulate debris out of the refrigerant circuit, it adsorbs moisture using a desiccant such as molecular sieve or activated alumina, and it captures acids formed by moisture and heat. Even trace moisture combined with refrigerant and oil forms acid that attacks compressor windings, so the drier protects the most expensive component.
When does a filter drier need to be replaced?
Replace the liquid line drier any time the sealed system is opened for repair, after every compressor burnout, and whenever refrigerant is recovered and recharged. It is not a scheduled maintenance item on an untouched system. A typical residential drier is a low-cost part, so skipping replacement during service is false economy.
How can I tell if the drier is clogged?
The classic sign is a measurable temperature drop across the drier body, where the outlet feels noticeably cooler than the inlet, sometimes with visible frost. Other symptoms include low suction pressure, reduced cooling capacity, and a starved evaporator. Confirm with gauges and a temperature probe rather than by feel alone before condemning the part.
Does the arrow direction and mounting orientation matter?
Yes. The arrow must point in the direction of refrigerant flow, which for a liquid line drier is from the condenser toward the metering device. Installing it backward pushes desiccant fines downstream and can plug the expansion valve. Mount so the sight glass, if fitted, is readable, and support the line to prevent vibration fatigue.
Can a homeowner replace one, or is a professional required?
Replacing a filter drier means opening a pressurized refrigerant circuit, brazing or torquing sealed connections, evacuating to a deep vacuum, and recharging by weight. In most jurisdictions handling refrigerant legally requires EPA Section 608 certification. This is genuinely a job for a licensed HVAC technician, both for safety and to keep your equipment warranty valid.
